Stainless Steel Self Tapping Rivets

Stainless Steel Self Tapping Rivets

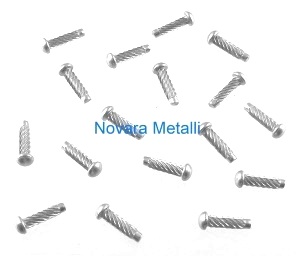

Stainless Steel Self Tapping Rivets - also called Hammer Drive Screws - Type U - BS 4174

A2 stainless steel (AISI 304)
Sizes : dh = head diameter, h = head heigth, L = shaft length
hs = recommended hole size (for steel, non ferrous, plastics) useful data :

 D (mm)  1,52  1,90  2,54  2,95  3,56  4,24  4,62
 dh (mm)  2,51  3,22  4,11  5,36  6,60  7,85  9,12
 h (mm)  0,86  1,24  1,75  2,18  2,82  3,05  3,48
 d2 (mm)
 1,24  1,60  2,11  2,44  2,96  3,45  3,81
 hs (mm) 1,30  1,65 2,20   2,55  3,10  3,70  4,10

Prices are VAT included
(14 items)

!

Stainless Steel Self Tapping Rivets 1,52x4,76 - 20pcs

Stainless Steel Self Tapping Rivets 1,52x4,76 - (#00x3/16") - L=4,76mm -             A2 (AISI 304) - 20 pieces packet - RAFIX 1,9x6,35 20

Stainless Steel Self Tapping Rivets 1,52x4,76 - 100pcs

Stainless Steel Self Tapping Rivets 1,52x4,76 - (#00x3/16") - L=4,76mm -             A2 (AISI 304) -100 pieces packet - RAFIX 1,9x6,35

Stainless Steel Self Tapping Rivets 1,9x6,35 - 20pcs

Stainless Steel Self Tapping Rivets 1,9x6,35 - (#0x1/4") - L=6,35mm -                    A2 (AISI 304) - 20 pieces packet - RAFIX 1,9x6,35 20

Stainless Steel Self Tapping Rivets 1,9x6,35 - 100pcs

Stainless Steel Self Tapping Rivets 1,9x6,35 - (#0x1/4") - L=6,35mm -                 A2 (AISI 304) - 100 pieces packet - RAFIX 1,9x6,35

Stainless Steel Self Tapping Rivets 1,9x9,53 - 20pcs

Stainless Steel Self Tapping Rivets 1,9x9,53 - (#0x3/8") - L=9,53mm -                   A2 (AISI 304) - 20 pieces packet - RAFIX 1,9x9,53 20

Stainless Steel Self Tapping Rivets 1,9x9,53 - 100pcs

Stainless Steel Self Tapping Rivets 1,9x9,53 - (#0x3/8") - L=9,53mm -                    A2 (AISI 304) - 100 pieces packet - RAFIX 1,9x9,53

Stainless Steel Self Tapping Rivets 2,54x4,76 - 20pcs

Stainless Steel Self Tapping Rivets 2,54x4,76 - (#2x3/16") - L=4,76mm -                 A2 (AISI 304) - 20 pieces packet - RAFIX 2,54x4,76 20

Stainless Steel Self Tapping Rivets 2,54x4,76 - 100pcs

Stainless Steel Self Tapping Rivets 2,54x4,76 - (#2x3/16") - L=4,76mm -                 A2 (AISI 304) - 100 pieces packet - RAFIX 2,54x4,76

Stainless Steel Self Tapping Rivets 2,54x6,35 - 20pcs

Stainless Steel Self Tapping Rivets 2,54x6,35 - (#2x1/4") - L=6,35mm -                 A2 (AISI 304) - 20 pieces packet - RAFIX 2,54x6,35 20

Stainless Steel Self Tapping Rivets 2,54x6,35 - 100pcs

Stainless Steel Self Tapping Rivets 2,54x6,35 - (#2x1/4") - L=6,35mm -                 A2 (AISI 304) - #2x1/4" - 100 pieces packet - RAFIX 2,54x6,35

Stainless Steel Self Tapping Rivets 2,54x7,96 - 20pcs

Stainless Steel Self Tapping Rivets 2,54x7,96 - (#2x5/16") - L=7,96mm -                 A2 (AISI 304) - #2x5/16" - 20 pieces packet - RAFIX 2,54x7,96 20

Stainless Steel Self Tapping Rivets 2,54x7,96 - 100pcs

Stainless Steel Self Tapping Rivets 2,54x7,96 - (#2x5/16") - L=7,96mm -                 A2 (AISI 304) - #2x5/16" - 100 pieces packet - RAFIX 2,54x7,96

Stainless Steel Self Tapping Rivets 2,54x9,53 - 20pcs

Stainless Steel Self Tapping Rivets 2,54x9,53 - (#2x3/8") - L=9,53mm -                 A2 (AISI 304) - 20 pieces packet - RAFIX 2,54x9,53 20

Stainless Steel Self Tapping Rivets 2,54x9,53 - 100pcs

Stainless Steel Self Tapping Rivets 2,54x9,53 - (#2x3/8") - L=9,53mm - A2 (AISI 304) - 100 pieces packet - RAFIX 2,54x9,53
